Our photoreactor LEDs are designed for photo-catalytic chemistry applications to irradiate all samples with maximum efficiency.
The EvoluChem™ LED spotlights are designed specifically for photo-catalytic chemistry applications. They fit the PhotoRedOx Box™ and they are designed to irradiate all samples with maximum efficiency. The LED chips are selected for specific wavelengths of 365 nm, 380 nm, 390 nm, 405 nm, 425 nm, 427 nm, 440 nm, 450 nm, 467 nm, 475 nm, 525 nm, 550 nm, 650 nm, 690 nm, 740 nm, 808 nm and 6200K white.
EvoluChem™ LED 18W
General Specifications
Irradiance at 2 cm:
90 mW/cm2 to 350 mW/cm2 see specific irradiance in table.
Input Voltage:
100-240 VAC
Beam Angle:
25° Except for 365 nm, 380 nm and 390 nm

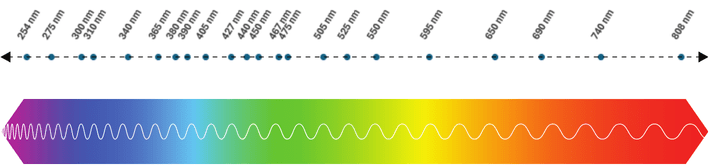

Wavelength Options:
365 nm, 380 nm, 390 nm, 405 nm, 425 nm, 427 nm, 440 nm, 450 nm, 467 nm, 475 nm, 525 nm, 550 nm, 595 nm, 650 nm, 690 nm, 740 nm, 808 nm and 6200K white
EvoluChem™ LED Products
Each LED is sold separately from the power plug of US Type A (HCK1006-01-034) , EU Type C (HCK1006-02-034) or UK Type G (HCK1006-03-034)
We are introducing a new dimmable version of our PF LED series (15W-18W). The format of the dimmable version is identical to the non-dimmable LED. However, we will have 2 types of dimmable LED 110V and 220V rated LEDs. Previously non-dimmable LEDs were sold with country specific power cord, HCK1012-01-XXX for US, HCK1012-02-XXX for EU and HCK1012-03-XXX for UK. In 2025, we will sell the power cord separately, non-dimmable LEDs will be sold only under the HCK1012-01-XXX reference (110V-220V).
Dimmable LEDS will be sold under 2 references, HCK1012-04-XXX (110V) and HCK1012-05-XXX (220V) (for use with the Photoredox box UV-Vis) or individually with an external dimmer)
Power cords will be sold under 3 references HCK1006-01-034 for US, HCK1006-02-034 for EU and HCK1006-03-034 for UK.
EvoluChem LED PF none-dimmable 110V-220V
In Stock shipped within 0-3 days; On backorder shipped within 2-3 weeks
| Wavelength | Irradiance | Name | SKU | Price | Availability | Select |
|---|---|---|---|---|---|---|
| 365 nm | 190 mW/cm2 | EvoluChem LED 365PF non-dimmable 110V-220V | HCK1012-01-029 | $260.00 | In stock |  |
| 380 nm | 211 mW/cm2 | EvoluChem LED 380PF non-dimmable 110V-220V | HCK1012-01-013 | $240.00 | In stock |  |
| 390 nm | 294 mW/cm2 | EvoluChem LED 390PF non-dimmable 110V-220V | HCK1012-01-018 | $240.00 | In stock |  |
| 405 nm | 201 mW/cm2 | EvoluChem LED 405PF non-dimmable 110V-220V | HCK1012-01-010 | $180.00 | In stock |  |
| 425 nm | 166 mW/cm2 | EvoluChem LED 425PF non-dimmable 110V-220V | HCK1012-01-012 | $180.00 | In stock |  |
| 427 nm | NA | EvoluChem LED 427PF non-dimmable 110V-220V | HCK1012-01-020 | $240.00 | In stock |  |
| 440 nm | 326 mW/cm2 | EvoluChem LED 440PF non-dimmable 110V-220V | HCK1012-01-021 | $240.00 | In stock |  |
| 450 nm | 328 mW/cm2 | EvoluChem LED 450PF non-dimmable 110V-220V | HCK1012-01-002 | $180.00 | In stock |  |
| 467 nm | 332 mW/cm2 | EvoluChem LED 467PF non-dimmable 110V-220V | HCK1012-01-022 | $180.00 | In stock |  |
| 475 nm | 206 mW/cm2 | EvoluChem LED 475PF non-dimmable 110V-220V | HCK1012-01-003 | $180.00 | In stock |  |
| 505 nm | NA | EvoluChem LED 505PF non-dimmable 110V-220V | HCK1012-01-028 | $180.00 | In stock |  |
| 525 nm | 163 mW/cm2 | EvoluChem LED 525PF non-dimmable 110V-220V | HCK1012-01-004 | $180.00 | In stock |  |
| 550 nm | 62 mW/cm2 | EvoluChem LED 550PF non-dimmable 110V-220V | HCK1012-01-023 | $180.00 | In stock |  |
| 595 nm | 91 mW/cm2 | EvoluChem LED 595PF non-dimmable 110V-220V | HCK1012-01-030 | $190.00 | In stock |  |
| 6200K white | 338 mW/cm2 | EvoluChem LED 6200K PF non-dimmable 110V-220V | HCK1012-01-005 | $180.00 | In stock |  |
| 650 nm | 335 mW/cm2 | EvoluChem LED 650PF non-dimmable 110V-220V | HCK1012-01-014 | $190.00 | In stock |  |
| 690 nm | 281 mW/cm2 | EvoluChem LED 690PF non-dimmable 110V-220V | HCK1012-01-024 | $190.00 | In stock |  |
| 740 nm | 328 mW/cm2 | EvoluChem LED 740PF non-dimmable 110V-220V | HCK1012-01-015 | $190.00 | In stock |  |
| 808 nm | 256 mW/cm2 | EvoluChem LED 808PF non-dimmable 110V-220V | HCK1012-01-025 | $190.00 | In stock |  |
#wtbp-table-27_23493_wrapper table {border-collapse: collapse;} #wtbp-table-27_23493_wrapper td {font-family: "Arial";font-size: 12px;padding-left: 10px !important;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;} #wtbp-table-27_23493 .wtbpAddToCartWrapper .button {overflow: hidden !important;font-family: "Arial" !important;font-size: 10px !important;color: #ffffff !important;width: 80px !important;height: 25px !important;line-height: 25px !important;padding-top: 0 !important;padding-bottom: 0 !important;border-radius: 4px !important;} p.product.woocommerce.add_to_cart_inline {
padding-bottom: 0px !important;
}
.wtbpAddToCartWrapper .quantity input {
max-width: 35px
}
EvoluChem LED PF Dimmable 110V
In Stock shipped within 0-3 days; On backorder shipped within 2-3 weeks
| Wavelength | Irradiance | Name | SKU | Price | Availability | Select |
|---|---|---|---|---|---|---|
| 365 nm | 190 mW/cm2 | EvoluChem LED 365PF Dimmable 110V | HCK1012-04-029 | $330.00 | In stock | |
| 380 nm | 211 mW/cm2 | EvoluChem LED 380PF Dimmable 110V | HCK1012-04-013 | $310.00 | In stock |  |
| 390 nm | 294 mW/cm2 | EvoluChem LED 390PF Dimmable 110V | HCK1012-04-018 | $310.00 | In stock |  |
| 405 nm | 201 mW/cm2 | EvoluChem LED 405PF Dimmable 110V | HCK1012-04-010 | $250.00 | In stock |  |
| 425 nm | 166 mW/cm2 | EvoluChem LED 425PF Dimmable 110V | HCK1012-04-012 | $250.00 | In stock |  |
| 427 nm | NA | EvoluChem LED 427PF Dimmable 110V | HCK1012-04-020 | $310.00 | On backorder | |
| 440 nm | 326 mW/cm2 | EvoluChem LED 440PF Dimmable 110V | HCK1012-04-021 | $310.00 | In stock |  |
| 450 nm | 328 mW/cm2 | EvoluChem LED 450PF Dimmable 110V | HCK1012-04-002 | $250.00 | In stock |  |
| 467 nm | 332 mW/cm2 | EvoluChem LED 467PF Dimmable 110V | HCK1012-04-022 | $250.00 | In stock | |
| 475 nm | 206 mW/cm2 | EvoluChem LED 475PF Dimmable 110V | HCK1012-04-003 | $250.00 | In stock |  |
| 505 nm | NA | EvoluChem LED 505PF Dimmable 110V | HCK1012-04-028 | $250.00 | In stock | |
| 525 nm | 163 mW/cm2 | EvoluChem LED 525PF Dimmable 110V | HCK1012-04-004 | $250.00 | In stock |  |
| 550 nm | 62 mW/cm2 | EvoluChem LED 550PF Dimmable 110V | HCK1012-04-023 | $250.00 | In stock | |
| 595 nm | 91 mW/cm2 | EvoluChem LED 595PF Dimmable 110V | HCK1012-04-030 | $260.00 | In stock | |
| 6200K white | 338 mW/cm2 | EvoluChem LED 6200K PF Dimmable 110V | HCK1012-04-005 | $250.00 | In stock |  |
| 650 nm | 335 mW/cm2 | EvoluChem LED 650PF Dimmable 110V | HCK1012-04-014 | $260.00 | In stock |  |
| 690 nm | 281 mW/cm2 | EvoluChem LED 690PF Dimmable 110V | HCK1012-04-024 | $260.00 | On backorder | |
| 740 nm | 328 mW/cm2 | EvoluChem LED 740PF Dimmable 110V | HCK1012-04-015 | $260.00 | In stock |  |
| 808 nm | 256 mW/cm2 | EvoluChem LED 808PF Dimmable 110V | HCK1012-04-025 | $260.00 | In stock | |
#wtbp-table-28_992631_wrapper table {border-collapse: collapse;} #wtbp-table-28_992631_wrapper td {font-family: "Arial";font-size: 12px;padding-left: 10px !important;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;} #wtbp-table-28_992631 .wtbpAddToCartWrapper .button {overflow: hidden !important;font-family: "Arial" !important;font-size: 10px !important;color: #ffffff !important;width: 80px !important;height: 25px !important;line-height: 25px !important;padding-top: 0 !important;padding-bottom: 0 !important;border-radius: 4px !important;} p.product.woocommerce.add_to_cart_inline {
padding-bottom: 0px !important;
}
.wtbpAddToCartWrapper .quantity input {
max-width: 35px
}
EvoluChem LED PF Dimmable 220V
In Stock shipped within 0-3 days; On backorder shipped within 2-3 weeks
| Wavelength | Irradiance | Name | SKU | Price | Availability | Select |
|---|---|---|---|---|---|---|
| 365 nm | 190 mW/cm2 | EvoluChem LED 365PF Dimmable 220V | HCK1012-05-029 | $330.00 | In stock | |
| 380 nm | 211 mW/cm2 | EvoluChem LED 380PF Dimmable 220V | HCK1012-05-013 | $310.00 | On backorder |  |
| 390 nm | 294 mW/cm2 | EvoluChem LED 390PF Dimmable 220V | HCK1012-05-018 | $310.00 | On backorder |  |
| 405 nm | 201 mW/cm2 | EvoluChem LED 405PF Dimmable 220V | HCK1012-05-010 | $250.00 | In stock |  |
| 425 nm | 166 mW/cm2 | EvoluChem LED 425PF Dimmable 220V | HCK1012-05-012 | $250.00 | On backorder |  |
| 427 nm | NA | EvoluChem LED 427PF Dimmable 220V | HCK1012-05-020 | $310.00 | On backorder | |
| 440 nm | 326 mW/cm2 | EvoluChem LED 440PF Dimmable 220V | HCK1012-05-021 | $310.00 | On backorder |  |
| 450 nm | 328 mW/cm2 | EvoluChem LED 450PF Dimmable 220V | HCK1012-05-002 | $250.00 | In stock |  |
| 467 nm | 332 mW/cm2 | EvoluChem LED 467PF Dimmable 220V | HCK1012-05-022 | $250.00 | On backorder |  |
| 475 nm | 206 mW/cm2 | EvoluChem LED 475PF Dimmable 220V | HCK1012-05-003 | $250.00 | On backorder |  |
| 505 nm | NA | EvoluChem LED 505PF Dimmable 220V | HCK1012-05-028 | $250.00 | On backorder | |
| 525 nm | 163 mW/cm2 | EvoluChem LED 525PF Dimmable 220V | HCK1012-05-004 | $250.00 | In stock |  |
| 550 nm | 62 mW/cm2 | EvoluChem LED 550PF Dimmable 220V | HCK1012-05-023 | $250.00 | On backorder | |
| 595 nm | 91 mW/cm2 | EvoluChem LED 595PF Dimmable 220V | HCK1012-05-030 | $260.00 | On backorder | |
| 6200K white | 338 mW/cm2 | EvoluChem LED 6200K PF Dimmable 220V | HCK1012-05-005 | $250.00 | On backorder |  |
| 650 nm | 335 mW/cm2 | EvoluChem LED 650PF Dimmable 220V | HCK1012-05-014 | $260.00 | In stock |  |
| 690 nm | 281 mW/cm2 | EvoluChem LED 690PF Dimmable 220V | HCK1012-05-024 | $260.00 | On backorder | |
| 740 nm | 328 mW/cm2 | EvoluChem LED 740PF Dimmable 220V | HCK1012-05-015 | $260.00 | On backorder |  |
| 808 nm | 256 mW/cm2 | EvoluChem LED 808PF Dimmable 220V | HCK1012-05-025 | $260.00 | On backorder | |
#wtbp-table-29_681860_wrapper table {border-collapse: collapse;} #wtbp-table-29_681860_wrapper td {font-family: "Arial";font-size: 12px;padding-left: 10px !important;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;} #wtbp-table-29_681860 .wtbpAddToCartWrapper .button {overflow: hidden !important;font-family: "Arial" !important;font-size: 10px !important;color: #ffffff !important;width: 80px !important;height: 25px !important;line-height: 25px !important;padding-top: 0 !important;padding-bottom: 0 !important;border-radius: 4px !important;} p.product.woocommerce.add_to_cart_inline {
padding-bottom: 0px !important;
}
.wtbpAddToCartWrapper .quantity input {
max-width: 35px
}
EvoluChem Power cords
| Name | SKU | Price | Stock status | Select |
|---|---|---|---|---|
| Power cord for PF LED Light EU Plug | HCK1006-02-034 | $9.90 | In stock |  |
| Power cord for PF LED Light UK Plug | HCK1006-03-034 | $9.90 | In stock |  |
| Power cord for PF LED Light US Plug | HCK1006-01-034 | $9.90 | In stock |  |
