PhotoRedox Kit Setup

PhotoRedox Kit Step-by-Step Guide

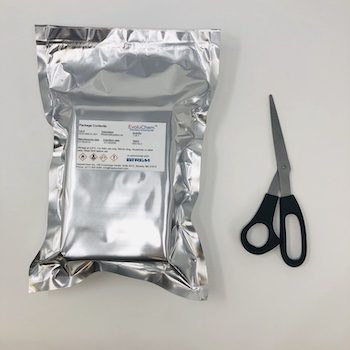

Step #1

Remove the chemistry kit from the protective casing (Mylar Bag)

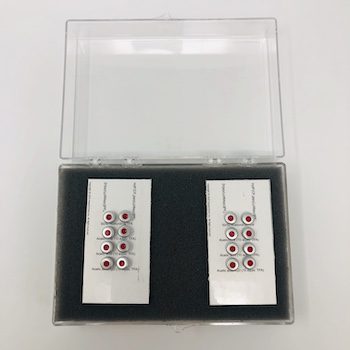

Step #2

Most kits contain two or more sets of arrays. Remove your desired set of arrays from the box, keeping them in the card holder.

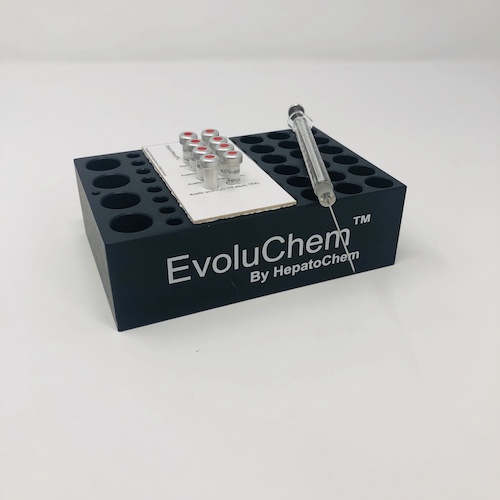

Step #3

Place arrays in reaction block HCK1006-01-002 and prepare the reaction conditions.

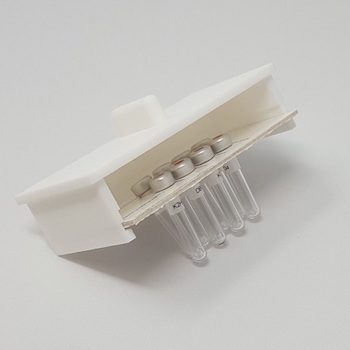

Step #4

Insert the kit array into the holder (HCK1006-01-017)

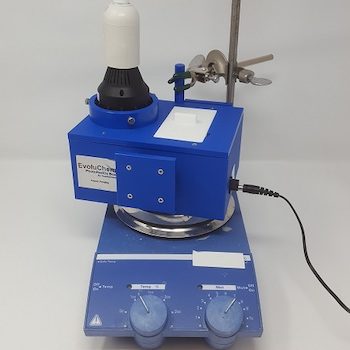

Step #5

Insert the holder into the PhotoRedox box (HCK1006-01-016)
